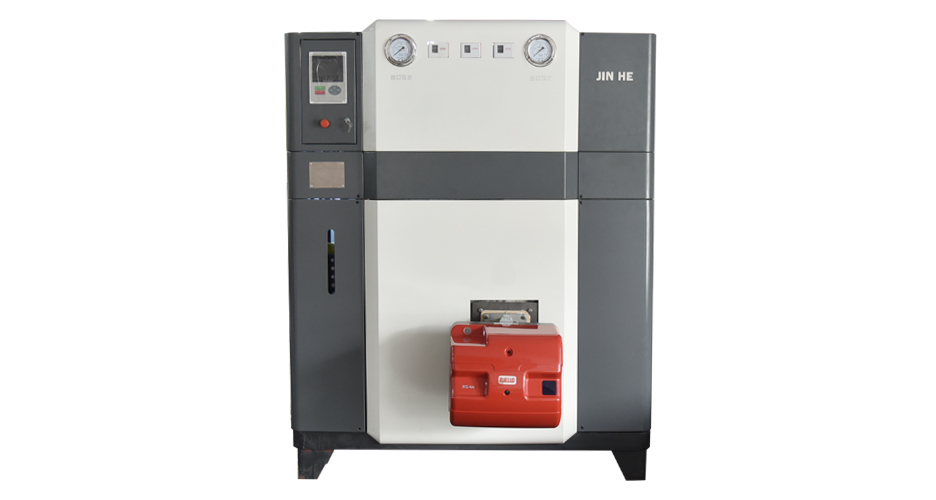

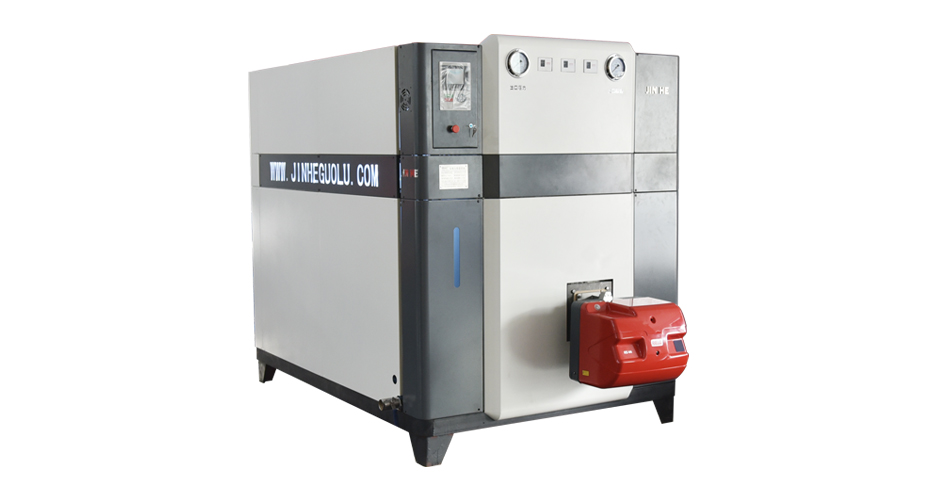

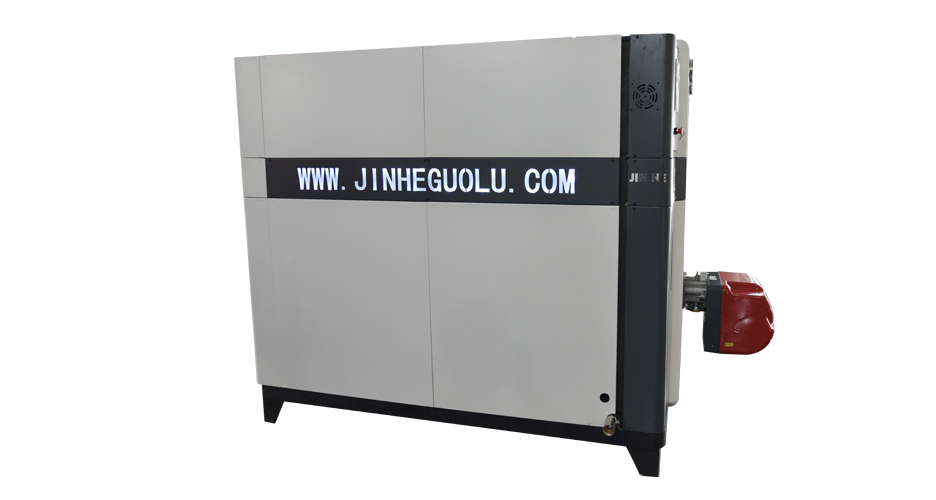

5G Smart Mobile Vaporizer (Fuel Gas Steam Generator)

（Fuel gas steam generator）

Human-Computer Interaction, 5G IoT remote operation monitoring
Device running status visible，Two-color light safety tips
Blue normal operation，Red abnormal warning

Patent NO.
ZL2018 2 0204306.2
ZL2018 2 0204261.9
ZL2018 2 0205621.7

Product advantages

ADVANTAGE

01

In accordance with the "special equipment safety supervision regulations" Article 99 of the definition of the boiler, the evaporator volume is less than the requirements of the 30L volume, does not belong to the "boiler and pressure vessel manufacturing supervision and management measures" provisions of the product safety performance of mandatory supervision and inspection category, It's free of local supervision and inspection.
02

The evaporator is a patented product, design, manufacture and strict implementation of national standards and standards. The furnace adopts vertical structure, compact and beautiful, the whole factory, small footprint, easy to install, fast steam production, high quality Steam. Combined with the energy-saving device, the body adopts a membrane-type Wall multi-return layout, with compact structure, large heating surface and extremely fast steam production.
03

Configuration of high-quality and stable computer controller, anti-interference ability, easy to operate, high degree of automation, the protection function is complete. Equipped with high-quality pressure controller, safety valve, with overpressure, low water level and overheating protection and other multiple protection, to ensure safe and reliable operation.
04

Easy to install, use and maintain, easy to operate.Distribution and service outlets throughout the country, user-friendly.

Scope of application

Washing and ironing industry

Dry cleaning machine, dryer, washing machine dewatering machine, ironing machine, iron and other equipment used
Packaging Machinery Industry

Labeling machine, sleeve labeling machine supporting the use of
Bio-chemical industry

Fermentation tank, reactor, sandwich pot mixer, emulsifying electroplating phosphating and other supporting equipment
Food machinery industry

Supporting the use of tofu machine, steam box, sterilization tank, packaging machine, paint equipment, dispensing machine and other equipment
Other industries

(Oil, automobile) steam cleaning industry, (hotels, dormitories, schools, mixing station) hot water supply, (bridges, railways) concrete conservation, (leisure Beauty Club) sauna bath, heat exchange equipment

Dongguan Jinhe boiler Equipment Co., Ltd. specializes in boiler and boiler equipment, pressure vessels, pressure piping, environmental equipment design, manufacture, installation, renovation, maintenance, energy saving, energy contract one-stop professional services company.

Dongguan Jinhe boiler Equipment Co., Ltd. is located in the engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries."2015 Joint Jiangsu Quan Xin boiler factory R & D and production of high efficiency full condensing gas boiler, to achieve production, marketing, research and one-stop comprehensive services”

Product patent

More than 20 years of industry experience, a number of equipment products have independent intellectual property patents
Main business

Design, manufacture, installation, renovation, maintenance, energy saving of boiler and boiler complete sets of equipment, pressure vessels, pressure pipes, environmental equipment
Company strength

Engineering department, production and operation department, equipment management department, quality inspection department, office management department and domestic 6 directly under branches, 2 independent subsidiaries.
After-sales service

National Customer Service Center area of 2400 square meters of rapid response throughout the country after-sales service

Dongguan Jinhe boiler Equipment Co., Ltd. headquartered in Humen, Dongguan covers an area of 10,000 square meters, including office, research and development, the National Customer Service Center covers an area of 2,400 square meters. The company has established a "boiler, pressure pipe installation quality assurance system", and has appointed the quality assurance engineers and quality control system responsible personnel, Quality Assurance System documents prepared, to provide customers with compliance with regulatory standards, safe and reliable quality service, and strive to make greater contribution to the prosperity of Social Economy and Environmental Protection.

Related product recommendations

5G Smart Mobile Vaporizer (Fuel Gas Steam Generator)

EvaporatorLSS0.12 -0.7-Y.Q technical parameter table(figure no：00127LS-0)

Serial number	Category			unit	value and description

1	Rated evaporation			t/h	0.12
2	Rated steam pressure			MPa	0.7
3	Saturated steam temperature			℃	171
4	Give the water temperature			℃	20
5	Heat exchange area		Radiation.	m2	1.05
			Convection	m2	1.24
6	Efficiency			%	88
7	Fuel			—	Natural gas、Light oil
8	Design exhaust temperature; no energy saver			℃	235
9	To the chimney outlet smoke total wind resistance			Pa	130
10	Normal water volume			L	28.7
11	Main steam valve diameter			mm	25
12	Feed water inlet			mm	15
13	Drain outlet			mm	15
14	Safety valve			mm	40
15	Energy saver in and out of water caliber			mm	15
16	Diameter of flue			mm	159
17	Maximum transport size(LWH)			mm	2000×1400×2050
18	Maximum size(LWH)			mm	2000×1600×2300
19	Transport weight			Kg	960
20	Fuel consumption	Natural gas		Nm3/h	23.2
		Light oil		Kg/h	19.2

21	Size of base(L*W)			mm	2000×1100


LSS0.12-0.7-Y.Q Standard configuration list

Serial number	Part Name	part name		specification / model	unit	quantity	origin (brand）

1	Boiler body	⑴		LSS0.12-0.7-Y.Q	set	1	Jinhe

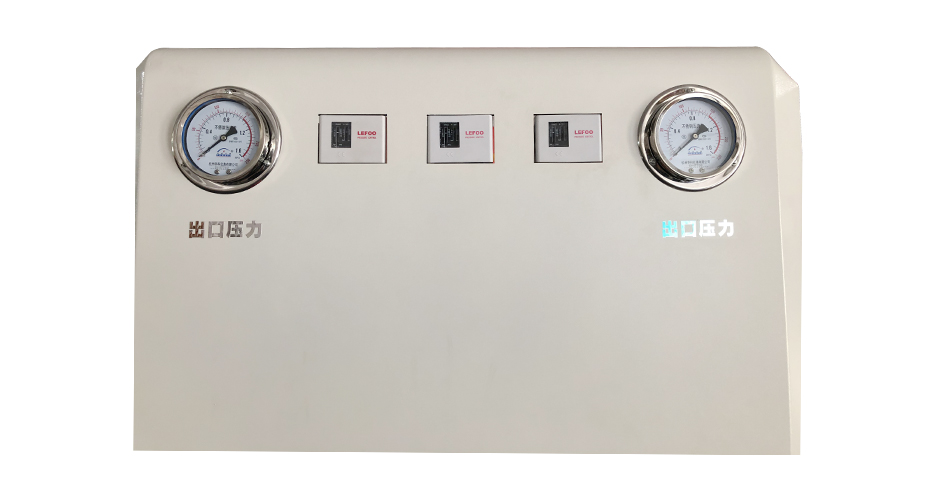

2	pressure gauge device	⑴	Electrode point pressure gauge	Y100 0～1.6MPa	only	1	Fuyang
		⑵	Pressure switch	JC210	only	1	Korea SNH
		⑶	Copper core variable diameter	1/2"*3/8"	only	1	Yongdexin
		⑷	Copper core variable diameter	3/8"*6/17"	only	1	Yongdexin

		⑸	Elbow	1/2"	only	2	Linyi

		⑹	Three links	1/2"	only	1	Linyi

		⑺	Outer wire	1/2"	only	3	Jiangsu province

		⑻	Water trap	1/2"	root	1	Jiangsu province

		⑼	Three-way cocks	X31-16T G1/2"	only	1	Yongdexin

3	Water level device	⑴	Elbow	3/4"	only	2	Linyi

		⑵	Three links	3/4"	only	1	Linyi

		⑶	Outer wire	3/4"	only	4	Linyi

		⑷	To take over	φ 27*3-galvanized	root	3	Qianzhou

		⑸	Water level gauge	type218	set	1	Mercury

		⑹	Copper ball valve	3/4"	only	1	Yongdexin


		⑺	Water level electrode	M18*1.5	root	3	Mercury

		⑻	Insulation cover	φ 76	only	1	Mercury

		⑼	Oil gasket	3/4"	only	1	Linyi

		⑽	Oil	G3/4"	only	1	Linyi

4	Main Steam Valve	⑴	internal thread copper globe valve	1"	only	1	Yongdexin

		⑵	Outer wire	1"	only	1	Linyi


5	Sewage device	⑴	Copper ball valve	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	1	Linyi


6	Safety valve device	⑴	safety valve	A28H-10 DN32 0.6~0.8 setting0.7MPa	only	1	Laian

7	Inlet device	⑴	inner tooth copper ball valv	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	4	Linyi

		⑶	Elbow	1/2"	only	1	Linyi

		⑷	Core adjustment	1/2"*3/4"	only	1	Linyi

		⑸	Copper check valve	1/2"	only	2	Yongdexin

8	Fire observation hole device	⑴	tube fire hole cover	φ 48	only	1	Jiangsu province

		⑵	View of fire hole glass	φ 35*10	only	1	Yangzhou

		⑶	Asbestos oil pad	3/4"	only	1	Linyi

9	control box	⑴	Rentai;	E1-2	set	1	Nanjing

10	Water replenishing device	⑴	water tank	including：4 sets of bolts M6*30	only	1	Jiangsu province

		⑵	Hose	1／2″*500	root	2	Yongdexin

		⑶	Float ball valve	1／2″	only	1	Yongdexin

		⑷	Outer wire	1／2″	only	3	Linyi

		⑸	water supply pump	15DW-750	set	1	Zhaoqing

11	Others	⑴

12	Information	⑴			Part	1


EvaporatorLSS0.2 -0.7-Y.Qtechnical parameter table(figure no：00207LS-0)

Serial number	Category			unit	value and description
1	Rated evaporation			t/h	0.2
2	Rated steam pressure			MPa	0.7
3	Saturated steam temperature			℃	171
4	Give the water temperature			℃	20
5	Heat exchange area		Radiation	m2	1.15
			Convection	m2	2.12
			Energy saver	m2	2.87
6	Efficiency			%	91.5
7	Fuel			—	Natural gas、Light oil
8	Design exhaust temperature			℃	170
9	To the chimney outlet smoke total wind resistance			Pa	110
10	Normal water volume			L	28.7
11	Main steam valve diameter			mm	25
12	Feed water inlet			mm	15
13	Drain outlet			mm	15
14	Safety valve			mm	40
15	Energy saver in and out of water caliber			mm	15
16	Diameter of flue			mm	159
17	Maximum transport size(LWH)			mm	1800×1380×2050


18	Maximum size(LWH)			mm	1800×1580×2300


19	Transport weight			Kg	677
20	Fuel consumption	Natural gas		Nm3/h	15.6
		Light oil		Kg/h	12.8

21	Size of base(L*W)			mm	2000×1100


Evaporator LSS0.2-0.7-Y.Q Standard configuration list

Serial number	Part Name;part name	part name		specification / model	unit	quantity	origin (brand）
1	Evaporator body	⑴		LSS0.2-0.7-Y.Q	set	1	Jinhe

2	pressure gauge device	⑴	Electrode point pressure gauge	Y100 0～1.6MPa	only	1	Fuyang

		⑵	Pressure switch	JC210	only	1	Korea SNH

		⑶	Copper core variable diameter	1/2"*3/8"	only	1	Yongdexin

		⑷	Copper core variable diameter	3/8"*6/17"	only	1	Yongdexin

		⑸	Elbow	1/2"	only	2	Linyi

		⑹	Three links	1/2"	only	1	Linyi

		⑺	Outer wire	1/2"	only	3	Jiangsu province

		⑻	Water trap	1/2"	root	1	Jiangsu province

		⑼	Three-way cocks	X31-16T G1/2"	only	1	Yongdexin

3	Water level device	⑴	Elbow	3/4"	only	2	Linyi

		⑵	Outer wire	3/4"	only	2	Linyi

		⑶	To take over	φ 27*3	root	3	Qianzhou

		⑷	Water level gauge	type218	set	1	Mercury

		⑸	inner tooth copper ball valv	1/2"	only	1	Yongdexin

		⑹	Water level electrode	M181.5（HM*L）	root	3	Mercury

		⑺	Insulation cover	φ 76	only	1	Mercury
		⑻	Oil gasket	3/4"	only	1	Linyi

		⑼	Oil	G3/4"	only	1	Linyi

		⑽	Core adjustment	G1/2"*11/4"	only	1	Linyi

		⑾	Outer wire	1/2"	only	1	Linyi

4	Main Steam Valve	⑴	globe valve	J41T-16 DN25	only	1	YuanDa

5	Steam and water separation device	⑴	Water separator	DN150	only	1	Jiangsu province

		⑵	Core adjustment	G1/2"*11/4"	only	1	Linyi
		⑶	inner tooth copper ball valv	1/2"	only	1	Yongdexin


		⑷	Outer wire	1/2"	only	1	Linyi

6	Sewage device	⑴	Copper ball valve	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	1	Linyi


7	Safety valve device	⑴	safety valve	A28Y-16H DN32	only	1	Laian
				0.6~0.8MPa setting0.7MPa

8	Inlet device	⑴	inner tooth copper ball valv	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	4	Linyi

		⑶	Elbow	1/2"	only	1	Linyi


		⑷	Copper check valve	1/2"	only	2	Yongdexin

9	Fire observation hole device	⑴	tube fire hole cover	φ 48	only	1	Jiangsu province
		⑵	View of fire hole glass	φ 35*10	only	1	Yangzhou
		⑶	Asbestos oil pad	3/4"	only	1	Linyi

10	control box	⑴	Rentai;	G2-E1-2	set	1	Nanjing

11	Comprehensive fill tank	⑴	water tank	5006001500	only	1	Jiangsu province

		⑵	Hose	1／2″*600	root	1	Yongdexin

		⑶	Hose	3／4″*500	root	1	Yongdexin

		⑷	Float ball valve	1／2″	only	1	Yongdexin

		⑸	Outer wire	1／2″	only	6	Linyi

		⑹	Outer wire	3／4″	only	2	Linyi


		⑺	inner tooth copper ball valv	3／4″	only	1	Yongdexin

		⑻	Elbow	1／2″	only	1	Linyi

		⑼	Core adjustment	1／2″*3／4″	only	1	Linyi

		⑽	inner tooth copper ball valv	1／2″	only	2	Linyi

12	water supply pump	⑴		15DW-750	set	1	Oron

13	Others	⑴	Wire mesh graphite pad	DN25:2only；DN32:1only；	batch	1	Linyi
				DN40:1only

		⑴	Aluminum silicate cardboard mat	6*φ 205/300	only	2	Jiangsu province
		⑴	Out smoke flange	6*φ 205/300	only	1	Jiangsu province
		⑴

14	Information	⑴			Part	1

Evaporator LSS0.3 -0.7-Y.Qtechnical parameter table(figure no：00307LS-0)

Serial number	Category					unit	value and description
1	Rated evaporation					t/h	0.3

2	Rated steam pressure					MPa	0.7

3	Saturated steam temperature					℃	171

4	Give the water temperature					℃	20
5	Heat exchange area			Radiation		m2	1.23
				Convection		m2	3.23
				Energy saver		m2	2.87
6	Efficiency					%	91.2
7	Fuel					—	Natural gas、Light oil
8	Design smoke exhaust temperature					℃	175
9	To the chimney outlet smoke total wind resistance					Pa	130

10	Normal water volume					L	28.7
11	Main steam valve diameter					mm	25
12	Feed water inlet					mm	15
13	Drain outlet					mm	15
14	Safety valve					mm	40
15	Energy saver in and out of water caliber					mm	15
16	Diameter of flue					mm	159
17	Maximum transport size(LWH)					mm	2000×1400×2050

18	Maximum size(LWH)					mm	2000×1600×2300

19	Transport weight					Kg	960
20	Fuel consumption	Natural gas				Nm3/h	23.2
		Light oil				Kg/h	19.2

21	Size of base(L*W)					mm	2000×1100


Evaporator LSS0.3-0.7-Y.Q Standard configuration list

Serial number	Part Name;part name	part name		specification / model	unit	quantity	origin (brand）

1	Evaporator body	⑴		LSS0.3-0.7-Y.Q	set	1	Jinhe

2	pressure gauge device	⑴	Electrode point pressure gauge	Y100 0～1.6MPa	only	1	Fuyang

		⑵	Pressure switch	JC210	only	1	Korea SNH

		⑶	Copper core variable diameter	1/2"*3/8"	only	1	Yongdexin

		⑷	Copper core variable diameter	3/8"*6/17"	only	1	Yongdexin

		⑸	Elbow	1/2"	only	2	Linyi

		⑹	Three links	1/2"	only	1	Linyi

		⑺	Outer wire	1/2"	only	3	Jiangsu province

		⑻	Water trap	1/2"	root	1	Jiangsu province

		⑼	Three-way cocks	X31-16T G1/2"	only	1	Yongdexin

3	Water level device	⑴	Elbow	3/4"	only	2	Linyi

		⑵	Outer wire	3/4"	only	2	Linyi

		⑶	To take over	φ 27*3	root	3	Qianzhou
		⑷	Water level gauge	type218	set	1	Mercury

		⑸	inner tooth copper ball valv	1/2"	only	1	Yongdexin

		⑹	Water level electrode	M181.5（HM*L）	root	3	Mercury

		⑺	Insulation cover	φ 76	only	1	Mercury
		⑻	Oil gasket	3/4"	only	1	Linyi

		⑼	Oil	G3/4"	only	1	Linyi

		⑽	Core adjustment	G1/2"*11/4"	only	1	Linyi

		⑾	Outer wire	1/2"	only	1	Linyi

4	Main Steam Valve	⑴	globe valve	J41T-16 DN25	only	1	YuanDa

5	Steam and water separation device	⑴	Water separator	DN150	only	1	Jiangsu province

		⑵	Core adjustment	G1/2"*11/4"	only	1	Linyi
		⑶	inner tooth copper ball valv	1/2"	only	1	Yongdexin


		⑷	Outer wire	1/2"	only	1	Linyi

6	Sewage device	⑴	Copper ball valve	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	1	Linyi


7	Safety valve device	⑴	safety valve	A28Y-16H DN32	only	1	Laian
				0.6~0.8MPa setting0.7MPa


8	Inlet device	⑴	inner tooth copper ball valve	1/2"	only	1	Yongdexin

		⑵	Outer wire	1/2"	only	4	Linyi

		⑶	Elbow	1/2"	only	1	Linyi


		⑷	Copper check valve	1/2"	only	2	Yongdexin

9	Fire observation hole device	⑴	tube fire hole cover	φ 48	only	1	Jiangsu province
		⑵	View of fire hole glass	φ 35*10	only	1	Yangzhou
		⑶	Asbestos oil pad	3/4"	only	1	Linyi

10	control box	⑴	Rentai;	G2-E1-2	set	1	Nanjing

11	Comprehensive fill tank	⑴	water tank	5006001500	only	1	Jiangsu province

		⑵	Hose	1／2″*600	root	1	Yongdexin

		⑶	Hose	3／4″*500	root	1	Yongdexin

		⑷	Float ball valve	1／2″	only	1	Yongdexin

		⑸	Outer wire	1／2″	only	6	Linyi

		⑹	Outer wire	3／4″	only	2	Linyi

		⑺	inner tooth copper ball valv	3／4″	only	1	Yongdexin

		⑻	Elbow	1／2″	only	1	Linyi

		⑼	Core adjustment	1／2″*3／4″	only	1	Linyi

		⑽	inner tooth copper ball valv	1／2″	only	2	Linyi

12	water supply pump	⑴		15DW-750	set	1	Oron

13	Others	⑴	Wire mesh graphite pad	DN25:2only；DN32:1only；	batch	1	Linyi
				DN40:1only


		⑴	Aluminum silicate cardboard mat	6*φ 205/300	only	2	Jiangsu province
		⑴	Out smoke flange	6*φ 205/300	only	1	Jiangsu province
		⑴

14	Information	⑴			Part	1


Evaporator LSS0.5-0.7-Y.Qtechnical parameter table(figure no：00507LS-0)

Serial number	Category				unit	value and description
1	Rated evaporation				t/h	0.5
2	Rated steam pressure				MPa	0.7
3	Saturated steam temperature				℃	171
4	Give the water temperature				℃	20
5	Heat exchange area		Radiation		m2	1.4
			Convection		m2	4.13
			Energy saver		m2	2.87
6	Efficiency				%	91
7	Fuel				—	Natural gas、Light oil
8	Design smoke exhaust temperature				℃	175
9	To the chimney outlet smoke total wind resistance				Pa	160
10	Normal water volume				L	29.8
11	Main steam valve diameter				mm	40
12	Feed water inlet				mm	15
13	Drain outlet				mm	15
14	Safety valve				mm	40
15	Energy saver in and out of water caliber				mm	15
16	Diameter of flue				mm	159
17	Maximum transport size(LWH)				mm	2350×1500×2050
18	Maximum size(LWH)				mm	2350×1700×2300
19	Transport weight				Kg	1360
20	Fuel consumption	Natural gas			Nm3/h	38.8
		Light oil			Kg/h	32

21	Size of base(L*W)				mm	2400×1200

Evaporator LSS0.5-0.7-Y.Q Standard configuration list

Serial number	Part Name;part name	part name		specification / model	unit	quantity	origin (brand）

1	Evaporator body	⑴		LSS0.5-0.7-Y.Q	set	1	Jinhe

2	pressure gauge device	⑴	Electrode point pressure gauge	Y100 0～1.6MPa	only	1	Fuyang

		⑵	Pressure switch	JC210	only	1	Korea SNH

		⑶	Copper core variable diameter	1/2"*3/8"	only	1	Yongdexin

		⑷	Copper core variable diameter	3/8"*6/17"	only	1	Yongdexin

		⑸	Elbow	1/2"	only	2	Linyi

		⑹	Three links	1/2"	only	1	Linyi

		⑺	Outer wire	1/2"	only	3	Jiangsu province

		⑻	Water trap	1/2"	root	1	Jiangsu province

		⑼	Three-way cocks	X31-16T G1/2"	only	1	Yongdexin

3	Water level device	⑴	Elbow	3/4"	only	2	Linyi

		⑵	Outer wire	3/4"	only	2	Linyi

		⑶	To take over	φ 27*3	root	3	Qianzhou
		⑷	Water level gauge	type218	set	1	Mercury

		⑸	inner tooth copper ball valv	1/2"	only	1	Yongdexin

		⑹	Water level electrode	M181.5（HM*L）	root	3	Mercury

		⑺	Insulation cover	φ 76	only	1	Mercury
		⑻	Oil gasket	3/4"	only	1	Linyi

		⑼	Oil	G3/4"	only	1	Linyi

		⑽	Core adjustment	G1/2"*11/4"	only	1	Linyi

		⑾	Outer wire	1/2"	only	1	Linyi

4	Main Steam Valve	⑴	globe valve	J41T-16 DN40	only	1	YuanDa

5	汽水分离装	⑴	Water separator	DN200	only	1	Jiangsu province

		⑵	Core adjustment	G1/2"*11/4"	only	1	Linyi
		⑶	inner tooth copper ball valv	1/2"	only	1	Yongdexin


		⑷	Outer wire	1/2"	only	1	Linyi

6	Sewage device	⑴	Copper ball valve	1/2"	only	1	Yongdexin
		⑵	Outer wire	1/2"	only	1	Linyi

7	Safety valve device	⑴	safety valve	A28Y-16H DN40	only	1	Laian
				0.6~0.8MPa setting0.7MPa


8	Inlet device	⑴	inner tooth copper ball valv	1/2"	only	1	Yongdexin
		⑵	Outer wire	1/2"	only	4	Linyi
		⑶	Elbow	1/2"	only	1	Linyi

		⑷	Copper check valve	1/2"	only	2	Yongdexin
9	Fire observation hole device	⑴	tube fire hole cover	φ 48	only	1	Jiangsu province
		⑵	View of fire hole glass	φ 35*10	only	1	Yangzhou
		⑶	Asbestos oil pad	3/4"	only	1	Linyi
10	control box	⑴	Rentai;	G5-E2	set	1	Nanjing
11	Comprehensive fill tank	⑴	water tank	5006001500	only	1	Jiangsu province
		⑵	Hose	1／2″*600	root	1	Yongdexin
		⑶	Hose	3／4″*500	root	1	Yongdexin
		⑷	Float ball valve	1／2″	only	1	Yongdexin
		⑸	Outer wire	1／2″	only	6	Linyi
		⑹	Outer wire	3／4″	only	2	Linyi

		⑺	inner tooth copper ball valv	3／4″	only	1	Yongdexin
		⑻	Elbow	1／2″	only	1	Linyi
		⑼	Core adjustment	1／2″*3／4″	only	1	Linyi
		⑽	inner tooth copper ball valv	1／2″	only	2	Linyi
12	water supply pump	⑴		15-DWL-1100	set	1	Oron
13	Others	⑴	Wire mesh graphite pad	DN25:1only；DN32:1only；	batch	1	Linyi
				DN40:2only


		⑴	Aluminum silicate cardboard mat	6*φ 205/300	only	2	Jiangsu province
		⑴	Out smoke flange	6*φ 205/300	only	1	Jiangsu province
		⑴
14	Information	⑴			Part	1

National service hotline：13829262146

Address：No. 6, Road 1, Shegang Industrial Zone, Humen Town, Dongguan, China

TEL：0769-85245101

fax：0769-85247528

Email：13829262146@139.com

technical support：MYIT

Friendship link：Boiler installation
